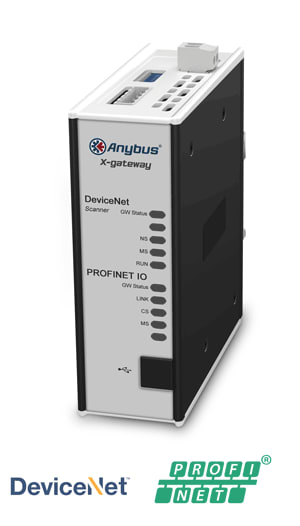

HMS - ABX-DEVM-PRTS ProfiNet/IO slave - AB7647

Anybus X-gateway – DeviceNet Scanner - PROFINET-IO Device

• Fast copying of cyclic I/O data between the two networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Powerful Scanner interface eliminates the need for a PLC controller on the DeviceNet network

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• DeviceNet Scanner/Master features

• An Anybus X-gateway with an integrated DeviceNet Scanner interface can be used when there is no existing DeviceNet controlling PLC.

• DeviceNet CONFORMANCE TESTED™ by ODVA

• DeviceNetNet Specification version: Communications Adapter profile 12

• Supports up to 63 DeviceNet Adapter/Slaves

• Max. 512 bytes of Input and 512 bytes of Output data

• Optional Live List of the active status of the connected adapters

• DeviceNet baudrate 125, 250, 500 kbit/s

• Supports I/O Slave messaging: Bit strobe, Polling, Cyclic, COS and Explicit Messaging

• MacID node address setting via DIP switches

• DeviceNet Scanner/Adapter network configuration via in-built web interface or RSLogix/Studio5000 software

• 1x 5-pin, 5.08 Phoenix plug connector

• PROFINET I/O Device/Slave interface

• PROFINET IO Device/Slave settings can be made by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET-IO Soft-Real-Time (RT) communication

• Max 512 bytes of Input and 512 bytes of Output data

• Up to 64 slots / 1 sub slot

• Cyclic data exchange (10 ms cycle time)

• Acyclic Data exchange (Record Data Requests)

• Baud rate 100 Mbit/s

• Integrated FTP server provides easy file management using standard FTP clients

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• PROFINET uplink configuration via web interface or .GSDML file

• 1x RJ45 network connector
