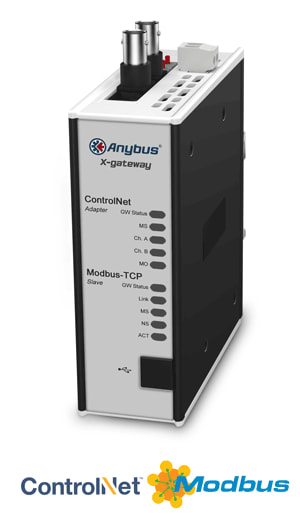

HMS - ABX-EMBS-CNTS Anybus X-Gateway Modbus - AB7636

Anybus X-gateway – ControlNet Adapter - Modbus TCP Server

• Fast copying of cyclic I/O data between the two networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• ControlNet Adapter features

• ControlNet Adapter settings can be made either via on-board switches, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• ControlNet CONFORMANCE TESTED™ by ODVA

• ControlNet Specification version: Communications Adapter profile 12

• Max. 450 bytes of Input and 450 bytes of Output data

• ControlNet baudrate 5 Mbit/s

• Supports Polled & Bitstrobed, I/O Change-of-state / cyclic I/O

• Supports media redundancy

• MacID node address setting via DIP switch

• Network Access Port (NAP)

• ControlNet network configuration via .EDS file

• Can be used with RG-6 quad shielded cable

• 2x BNC network connectors

• Modbus TCP Slave interface

• Modbus TCP Slave settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• Conforms to Modbus TCP v1.0

• Modbus TCP class 0, class 1 and partially class 2 slave functionality

• 10/100Mbit operation in full or half-duplex

• Integrated FTP server provides easy file management using standard FTP clients

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• Per-user security framework

• Quality of Service (QoS) available

• DNS Capability

• TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)

• Integrated switch allowing for a daisy-chain topology

• 2x RJ-45 ports available simultaneously.
