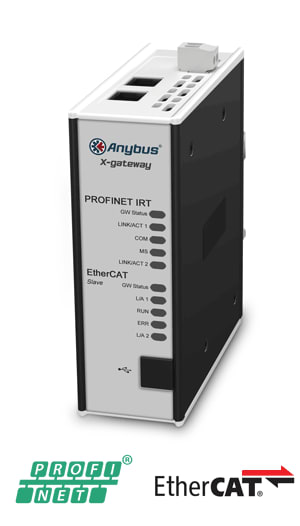

HMS - Anybus X-gateway ABX-PIR2-ECTS - AB7506

Anybus X-Gateway - EtherCAT Slave - PROFINET-IRT Device

• Fast copying of cyclic I/O data between the two networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• EtherCAT Slave interface

• EtherCAT Slave settings can be made by importing the provided .XML file into engineering tool of the controlling PLC.

• Complete EtherCAT slave according to DS 301 V4.022

• Supports CANopen over EtherCAT

• Max 512 bytes of Input and 512 bytes of Output data (PDO + SDO)

• Baudrate 100 Mbit/s full duplex

• 4 FMMU channels (can be used freely by the EtherCAT master for any purpose.)

• 4 SM channels

• Bit-oriented FMMU operation

• Position addressing, node addressing and logical addressing

• PDI Watchdog

• Output I/O Sync Manager Watchdog

• Integrated switch allowing for a daisy-chain topology

• 2x RJ45 EtherCAT connectors

• PROFINET IRT Device/Slave interface

• PROFINET IRT Device/Slave settings can be made either via the built-in web interface, or by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET RT and IRT functionality specification 2.3

• Conformance tested supporting Class A, B and C

• Max 512 bytes of Input and 512 bytes of Output data

• Baud rate 10/100 Mbit/s Isochronous cycle times 0.25 to 4 ms (25 Us increments)

• SNMP-MIBII support

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• LLDP (Linked Layer Discovery Protocol)

• Support for I&M (Identification & Maintenance)

• PROFINET uplink configuration via .GSDML file

• Dual port cut-through switch

• Dual RJ-45 ports available simultaneously
