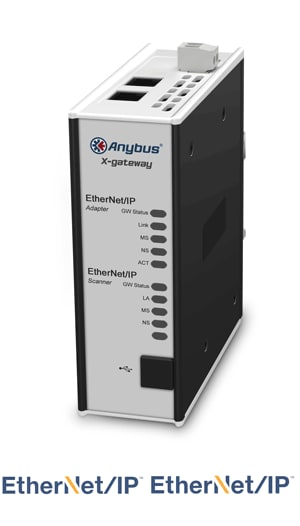

HMS - Anybus X-gateway EtherNet/IP Master-Ethe - AB7668

Anybus X-gateway – EtherNet/IP Scanner - EtherNet/IP Adapter

• Fast copying of cyclic I/O data between the two EtherNet/IP networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Powerful Scanner interface eliminates the need for a PLC controller on one side of the EtherNet/IP network

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• EtherNet/IP Scanner/Master interface

• An Anybus X-gateway with an integrated EtherNet/IP Scanner interface can be used when there is no existing EtherNet/IP controlling PLC. The X-gateway will perform EtherNet/IP Scanner functions.

• EtherNet/IP CONFORMANCE TESTED™ by ODVA

• Connects up 64 EtherNet/IP Adapter/Slaves

• 10/100Mbit operation in full or half-duplex

• Max. 509 bytes Input and 505 bytes Output data

• Optional Live List of the active status of the connected adapters

• Integrated FTP server provides easy file management using standard FTP clients.

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• Support for CIP Objects

• DNS Capability

• TCP/IP settings via on-board DIP switches, DHCP/ARP/Anybus IPconfig (HICP)

• EtherNet/IP Scanner/Adapter network configuration via in-built web interface or RSLogix/Studio5000 software

• 1x RJ-45 Ethernet port

• EtherNet/IP Adapter/Slave interface

• EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• EtherNet/IP CONFORMANCE TESTED™ by ODVA

• EtherNet/IP Level 2 I/O Server CIP

• 10/100Mbit operation in full or half-duplex

• Max. 509 bytes Input and 505 bytes Output data

• Device Level Ring (DLR) functionality available (announce-based ring participant)

• Integrated FTP server provides easy file management using standard FTP clients.

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• Per-user security framework

• Quality of Service (QoS) available

• DNS Capability

• TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)

• Integrated switch allowing for a daisy-chain topology

• 2x RJ-45 EtherNet/IP ports available simultaneously
