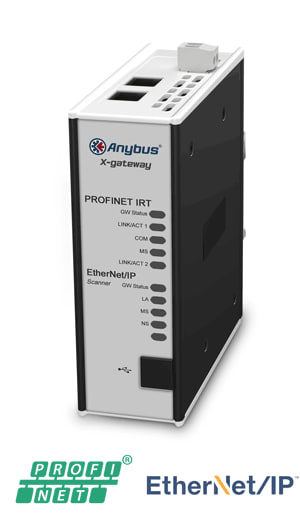

Anybus X-gateway – EtherNet/IP Adapter - PROFINET-IRT Device

• Fast copying of cyclic I/O data between EtherNet/IP and PROFINET-IRT networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• EtherNet/IP Adapter/Slave interface

• EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• EtherNet/IP CONFORMANCE TESTED™ by ODVA

• EtherNet/IP Level 2 I/O Server CIP

• 10/100Mbit operation in full or half-duplex

• Max. 509 bytes Input and 505 bytes Output data

• Device Level Ring (DLR) functionality available (announce-based ring participant)

• Integrated FTP server provides easy file management using standard FTP clients.

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• Per-user security framework

• Quality of Service (QoS) available

• DNS Capability

• TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)

• Integrated switch allowing for a daisy-chain topology

• 2x RJ-45 EtherNet/IP ports available simultaneously

• PROFINET IRT Device/Slave interface

• PROFINET IRT Device/Slave settings can be made either via the built-in web interface, or by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET RT and IRT functionality specification 2.3

• Conformance tested supporting Class A, B and C

• Max 220 bytes of Input and 220 bytes of Output data

• Baud rate 10/100 Mbit/s Isochronous cycle times 0.25 to 4 ms (25 Us increments)

• SNMP-MIBII support

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• LLDP (Linked Layer Discovery Protocol)

• Support for I&M (Identification & Maintenance)

• PROFINET uplink configuration via .GSDML file

• Dual port cut-through switch

• Dual RJ-45 ports available simultaneously
