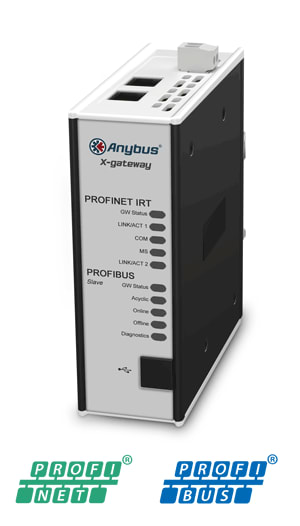

Anybus X-gateway - PROFINET-IRT Device - PROFIBUS Slave

• Fast copying of cyclic I/O data between the two networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• PROFINET IRT Device/Slave interface

• PROFINET IRT Device/Slave settings can be made either via the built-in web interface, or by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET RT and IRT functionality specification 2.3

• Conformance tested supporting Class A, B and C

• Max 220 bytes of Input and 220 bytes of Output data

• Baud rate 10/100 Mbit/s Isochronous cycle times 0.25 to 4 ms (25 Us increments)

• SNMP-MIBII support

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• LLDP (Linked Layer Discovery Protocol)

• Support for I&M (Identification & Maintenance)

• PROFINET uplink configuration via .GSDML file

• Dual port cut-through switch

• Dual RJ-45 ports available simultaneously

• PROFIBUS Slave interface

• PROFIBUS Slave settings can be made either via on-board switches, or by importing the provided .GSD file into engineering tool of the controlling PLC.

• Complete PROFIBUS-DP/DPV1 Slave functionality according to extensions of EN 50170

• Supports Class 1 & Class 2 services

• Automatic baudrate detection up to 12Mbit/s

• Max. Cyclic I/O data 244 bytes Input and 244 bytes Output, max 344 bytes total (in+out)

• Acyclic User Parameter data / Diagnostics length - up to 237 bytes

• Supports PROFIBUS features: Sync and Freeze and Watchdog

• PROFIBUS slave settings via on-board switches or vis .GSD file

• 1x D-sub 9-pin female PROFIBUS connector
