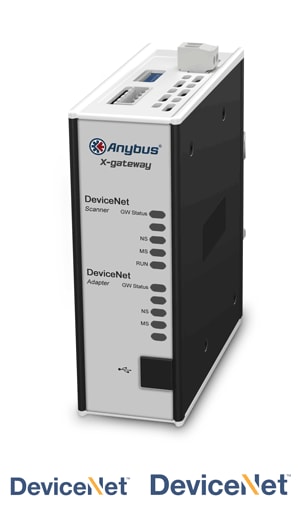

HMS - DeviceNet slave adapter ABX-DEVM-DEVS - AB7811

Anybus X-gateway – DeviceNet Scanner - DeviceNet Adapter

• Fast copying of cyclic I/O data between the two DeviceNet networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Powerful Scanner interface for DeviceNet eliminates the need for a PLC controller

• Optional control and status information added to the I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• DeviceNet Scanner/Master features

• An Anybus X-gateway with an integrated DeviceNet Scanner interface can be used when there is no existing DeviceNet controlling PLC.

• DeviceNet CONFORMANCE TESTED™ by ODVA

• DeviceNetNet Specification version: Communications Adapter profile 12

• Supports up to 63 DeviceNet Adapter/Slaves

• Max. 512 bytes of Input and 512 bytes of Output data

• Optional Live List of the active status of the connected adapters

• DeviceNet baudrate 125, 250, 500 kbit/s

• Supports I/O Slave messaging: Bit strobe, Polling, Cyclic, COS and Explicit Messaging

• MacID node address setting via DIP switches

• DeviceNet Scanner/Adapter network configuration via in-built web interface or RSLogix/Studio5000 software

• 1x 5-pin, 5.08 Phoenix plug connector

• DeviceNet Adapter features

• DeviceNet Adapter settings can be made either via on-board switches, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• DeviceNet CONFORMANCE TESTED™ by ODVA

• DeviceNetNet Specification version: Communications Adapter profile 12

• Max. 512 bytes of Input and 512 bytes of Output data

• DeviceNet baudrate 125, 250, 500 kbit/s

• Supports I/O Slave messaging: Bit strobe, Polling, Cyclic, COS and Explicit Messaging

• MacID node address setting via DIP switch

• DeviceNet network configuration via .EDS file

• 1x 5-pin, 5.08 Phoenix plug connector
