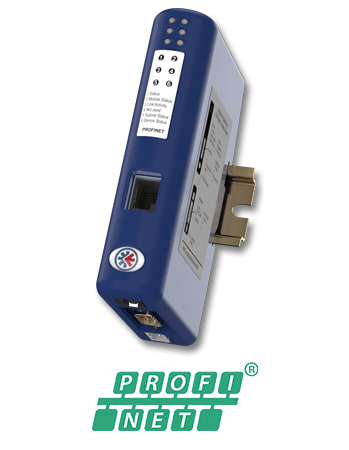

HMS - Profinet IO device - AB7317

Anybus Communicator CAN - PROFINET

• Saves machine builders and device manufacturers of integrating a CAN interface

• Allows system integrators to retro-fit older CAN-based automation devices into modern PROFINET communication structures

• Requires no hardware or software changes to be made to the connected device

• Compatible with all PLCs with PROFINET support

• Performs complete CAN protocol conversion, no PLC function blocks required

• Flexible CAN frame building method for both Response/Request or Produce/Consume protocols

• Intelligent I/O data mapping within the Communicator permits even devices with slow CAN communication can be integrated without any restrictions to the upper network

• Integrated Email client, FTP server and embedded webserver for diagnostics and data visualization

• Always free technical support from HMS and our global Anybus Distributors

• CAN configuration - Anybus Configuration Manager

• The Anybus Configuration Manager (ACM) is included with the purchase of the Anybus Communicator.

• Graphical CAN frame building support using several ready-made CAN functions.

• Can configure any CAN 2.0A or 2.0B based protocol (11 and 29 bit identifiers).

• Configures upto 128 transactions containing a total of 256 CAN frames

• Monitor/Modify function of process I/O data informing of CAN transaction status

• Diagnostic transaction Live List in the network I/O informing of CAN transaction status

• Multi-language support, supporting English, German, Spanish, Italian, French, Polish, Russian, Chinese and Japanese

• Handy Save/Load function allows for a completed configuration to be re-used for many other installations

• Password protection prevents unauthorized upload and download of configurations

• PROFINET interface features

• Complete PROFINET-IO Soft-Real-Time (RT) communication

• Max 512 bytes of Input and 512 bytes of Output data

• Up to 64 slots / 1 sub slot

• Cyclic data exchange (10 ms cycle time)

• Acyclic Data exchange (Record Data Requests)

• Baud rate 10/100 Mbit/s

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• PROFINET uplink configuration via .GSDML file

• 1x RJ45 network connector
