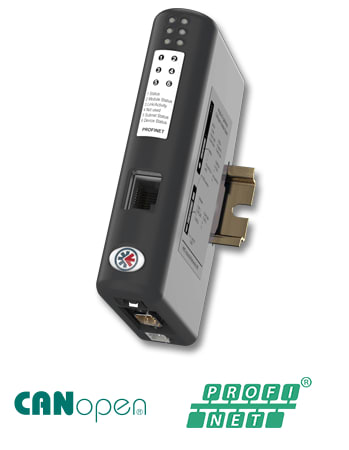

HMS - Profinet, X-gateway CANopen master/Slave - AB7307

Anybus X-gateway – CANopen Master – PROFINET-IO Device

• Fast copying of cyclic I/O data between a CANopen and PROFINET network (5 ms)

• Full CANopen Master/Manager functionality, eliminates the need for an PLC controller on the CANopen network

• Connects up to 126 CANopen slave devices

• Proven and tested with all PLC manufacturers

• Easy CANopen configuration via the included Anybus Configuration Manager software. No programming required

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• CANopen Master/Manager Interface

• CANopen Master/Manager implementation according to the CANopen specification DS301 v4.0.2.

• Connects up to 126 CANopen slaves

• Network Management (NMT) messages, to configure and initialize the network.

• Supporting 128 Receive PDOs and 128 Transmit PDOs, each can transfer up to 8 bytes.

• Up to 510 bytes of cyclic data in each direction (PDO)

• PDO message types: COS (Change of State), Cyclic Synchronous, Acyclic Synchronous.

• Synchronization Object (SYNC) is used for synchronizing PDO communication.

• Heartbeat Mechanism to monitor the status of nodes.

• Node Guarding/Life Guarding Protocol provides possibility to guard slaves or the master.

• EMCY (Emergency Object) is used for error reporting.

• LSS master functionality

• Can also function as a CANopen Slave

• PROFINET I/O Device/Slave interface

• PROFINET IO Device/Slave settings can be made by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET-IO Soft-Real-Time (RT) communication

• Max 512 bytes of Input and 512 bytes of Output data

• Up to 64 slots / 1 sub slot

• Cyclic data exchange (10 ms cycle time)

• Acyclic Data exchange (Record Data Requests)

• Baud rate 100 Mbit/s

• Integrated FTP server provides easy file management using standard FTP clients

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• PROFINET uplink configuration via web interface or .GSDML file

• 1x RJ45 network connector
