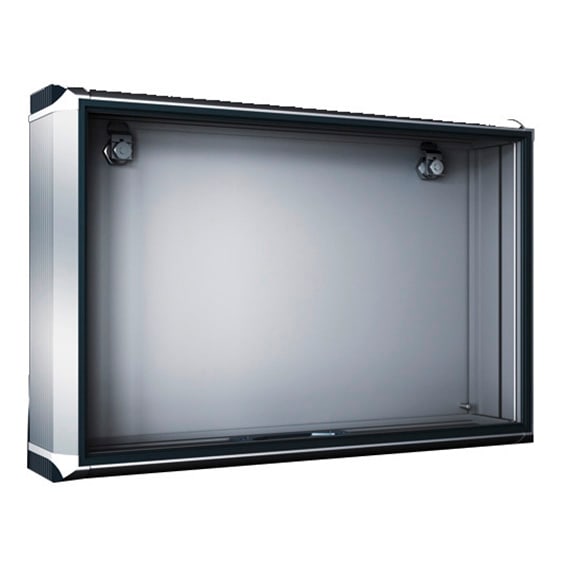

Rittal - CP Optipanel Basisprogramm - 6380510

Optipanel enclosure, support arm connection Ø130mm, hinged rear panel and cam with 3mm double-bit lock insert, seals and assembly parts for front panels, for the configuration of subracks, to fit front panel 520mm width, 150mm Installation depth, to fit front panels with 520mm width, 500mm height, aluminium enclosure, high thermal conductivity for optimum passive heat dissipation, low weight coupled with high stability, compatible with all Rittal stand and support arm systems, natural anodised extruded aluminium section enclosure, die-cast zinc corner pieces, plastic corner protectors, corner pieces RAL 7035, corner protectors RAL 7024, IP65, supply includes seals, seals and assembly parts for front panels, 8.3kg weight, packs of 1pc
