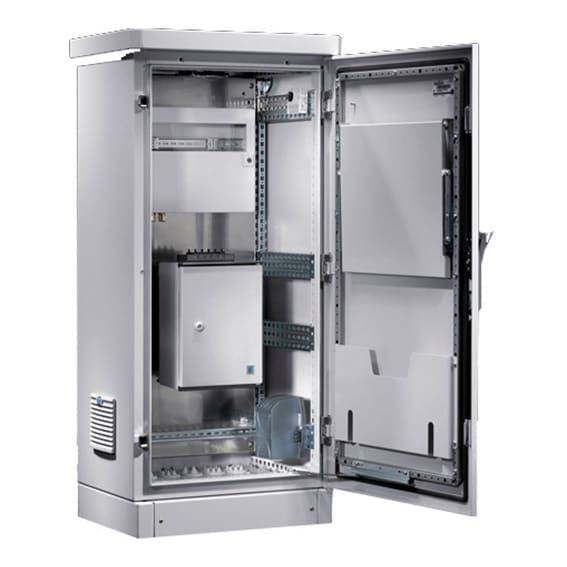

Rittal - CS 9783610 NewBasic BHT 800x1200x500 - 9783610

CS Basic enclosure, 800mm width, 1200mm height, 100mm height (base/plinth), 1355mm height (mounted), 500mm depth, 712mm clearance width, 1112mm clearance height, 449mm clearance depth, 850mm rain canopy width, 55mm rain canopy height, 550mm rain canopy depth, number of doors 1, outdoor enclosure with 100mm transport plinth and rain canopy with projections on all sides, aluminium AlMg3, powder-coated UV-resistant pure polyester, RAL 7035, IP55, NEMA 3R, supply includes single-walled outdoor enclosure, fully preconfigured, basic enclosure with open base, transport plinth with screw-fastened trim panels front and rear 25mm system punchings in the roof, base, front and in the enclosure depth, front door with door stay, swing lever handle and semi-cylinder, lock BJ 20027 Rain canopy, 49.5kg weight, packs of 1pc
