TrafoModern - GW4-050-S002 400VAC/24VDC 5A (0,37) - GW4-050-S002

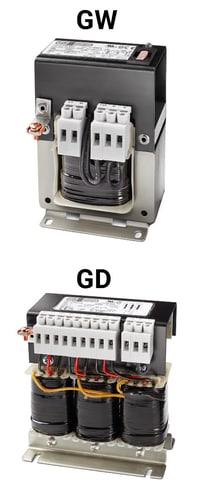

DC power supply units GW - GD

• Separate windings

• Insulation class B

• Ambient temperature –25 to 40 °C

• Connection terminal

• Frequency 50/60 Hz

• Single-phase GW units with fuse on the DC side and LED. Interference emission Class B, ( EN 55 011, 22 )

• ESD 6 kV contact ( level 3 ) 8 kV air ( level 3 ), IEC/EN 61 000-4-2

• RFI 10 V/m, modulated, IEC/EN 61 000-4-3

• Burst 2 kV ( level 3 ), IEC/EN 61 000-4-4

• Surge 2 kV ( inst.-class 3 ), IEC/EN 61 000-4-5

• Impuls voltage 4,9 kV, IEC/EN 60 947. Ambient temperature 25 °C to +55 °C linear charateristic of the Derating Curve from 40° C to 55° C from 100% output to 93% output

• Storage and transport temperature -25 °C to +85 °C

• Degree of soiling 2, EN 50 178

• Vibration 0,0075 mm, ( 10-57 Hz ), 10 Zyklen, IEC 60 068-2-6

• hock 11 ms/15 g, IEC 60 068-2-27, ( 3 shocks )

• Installation altitude max. 2000 m above sea level, if higher: take derating into account.
