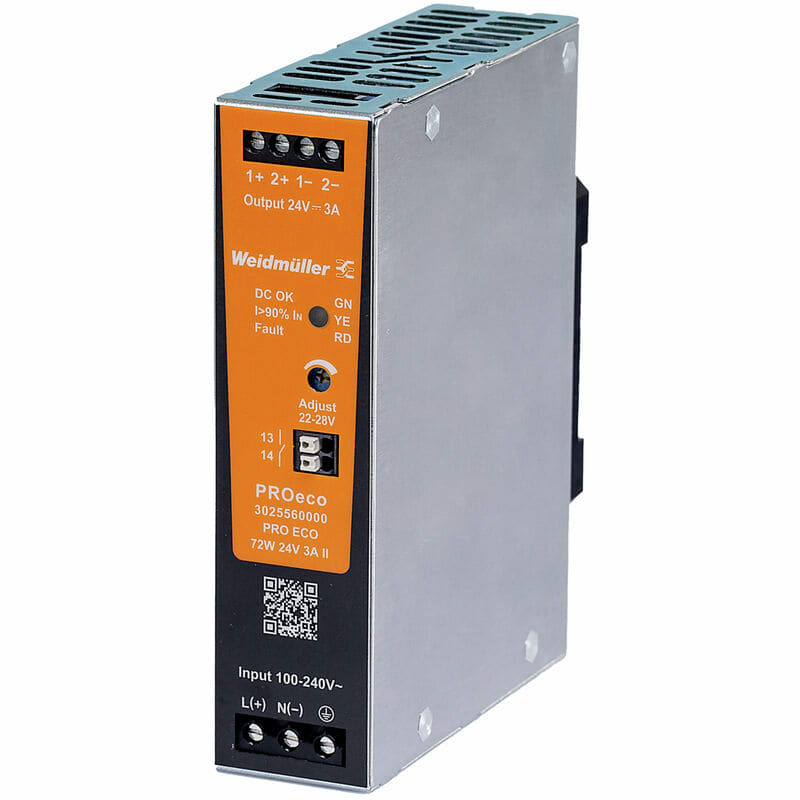

Weidmuller - PRO ECO 72W 24V 3A II Wechselstromversor - 3025560000

The new PROeco second generation power supplies maximise the availability of automation applications. The twelve-part series offers standard functions: with high performance, efficiency and suitability for many systems. The three-colour LED makes service activities and the integration of PROeco devices particularly easy. The series is compatible with direct current uninterruptible power supplies, electronic load monitoring and diode modules and is suitable for setting up power management systems. The compact design suits space-contrained applications, such as flat control cabinets in the field.

• Parallel Connection Option - Maximum Three Units

• Adjustable Output Voltage Via Potentiometer (22–28 V DC)

• AC Input Voltage Range 85–264 V AC

• Efficiency Up to 87.5% at 230 V AC

• Operating Temperature Range −25 °C to 70 °C
